schedule_meta

-1 rows


Description

Stores high-level information about schedule files.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
schedule_id serial 10 √ nextval('schedules_meta_schedule_id_seq'::regclass)
validation_meta.schedule_id audit_validation_meta_schedule_id_fkey R
modules_test_meta.schedule_id modules_testdata_meta_schedule_id_fkey R
test_meta.schedule_id testdata_meta_schedule_id_fkey R

Unique identifier for the schedule file. Auto-incremented upon insertion.
schedule_name text 2147483647 √ null

The name of the schedule file used in cycler software.
test_type enum_test_type 2147483647 √ null

The type of test performed, e.g. ICT, Characterization, Baseline, Profile Testing.
cycler_make text 2147483647 √ null

The make of the cycler schedule is written for, e.g. Arbin or Maccor.
date_created date 13 √ null

Date schedule file was created. Not necessarily the date the test was ran.
created_by text 2147483647 √ null

The person who created the schedule file.
comments text 2147483647 √ null

Any comments regarding the schedule file.
cv_voltage_threshold_mv int4 10 √ null

The voltage threshold (in mV) used to determine when to switch from constant current to constant voltage during charge.
details jsonb 2147483647 √ null

Other details about the schedule file.

Indexes

Constraint Name Type Sort Column(s)
schedule_id Primary key Asc schedule_id
schedules_meta_file_name_key Must be unique Asc schedule_name

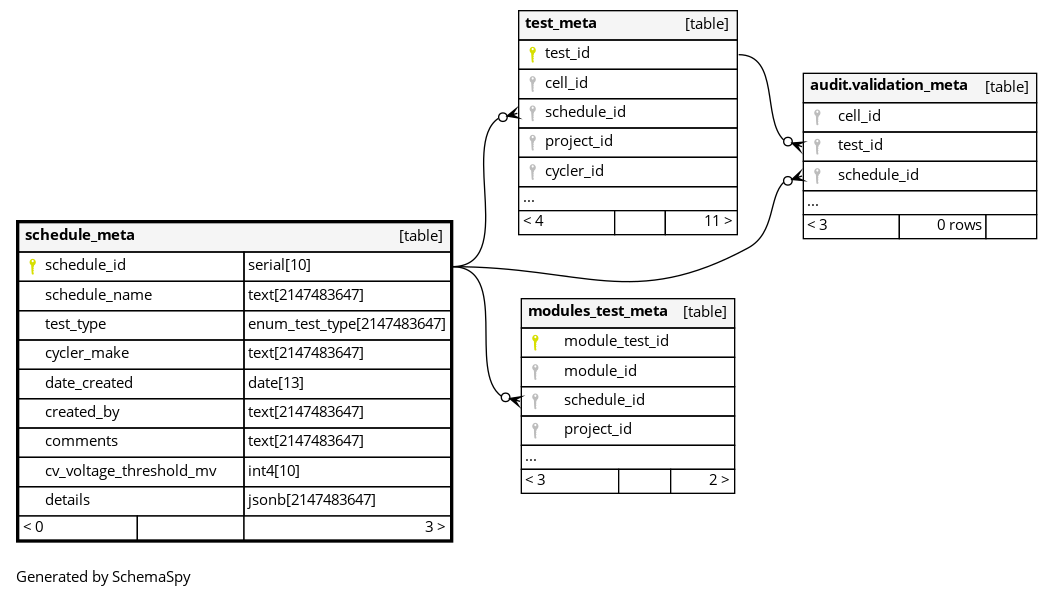

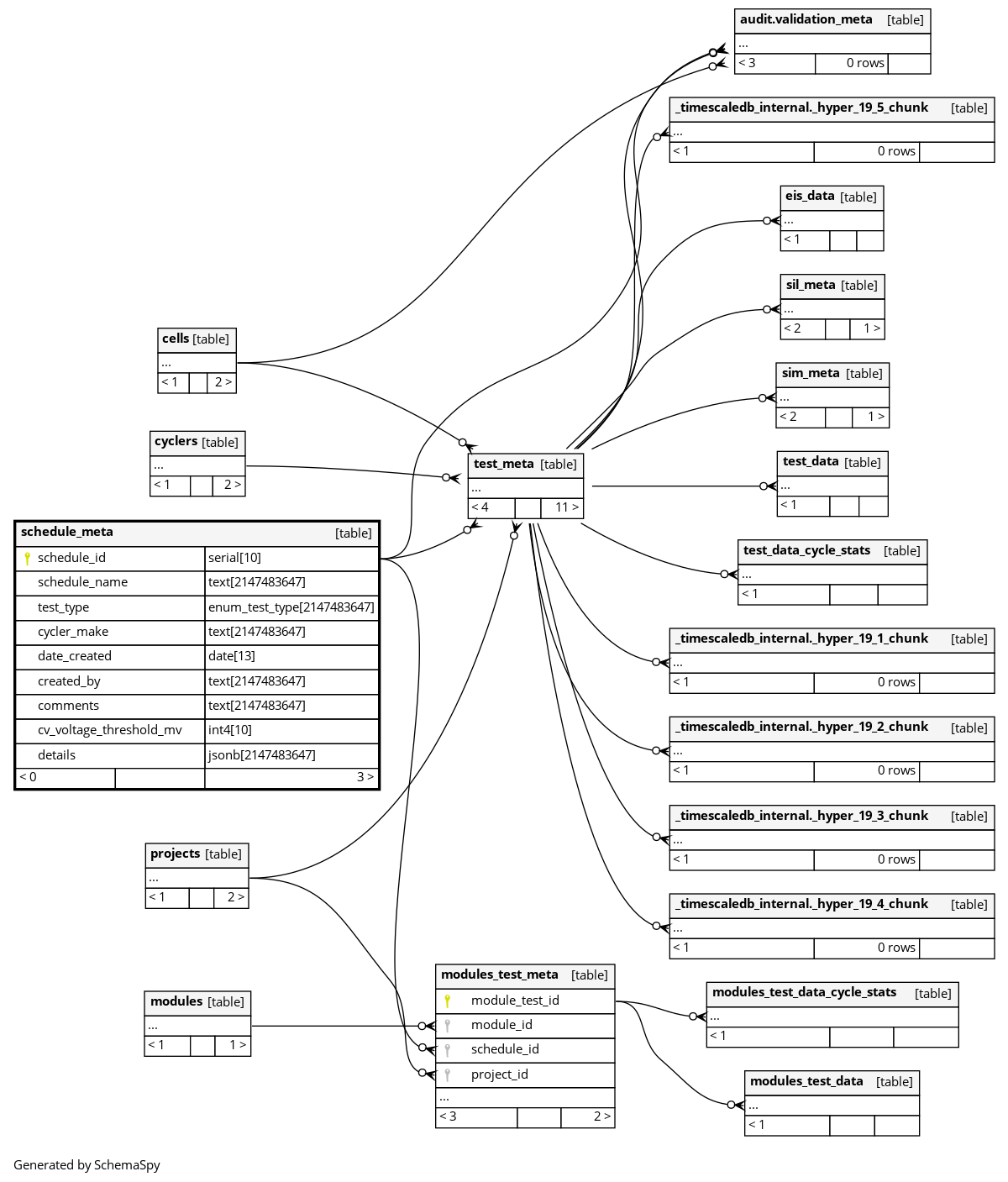

Relationships

Close relationships within degrees of separation
