test_meta

-1 rows


Description

Contains high-level information about tests on single cells.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
test_id serial 10 √ nextval('testdata_meta_test_id_seq'::regclass)
_hyper_19_1_chunk.test_id 1_1_testdata_test_id_fkey R
_hyper_19_2_chunk.test_id 2_2_testdata_test_id_fkey R
_hyper_19_3_chunk.test_id 3_3_testdata_test_id_fkey R
_hyper_19_4_chunk.test_id 4_4_testdata_test_id_fkey R
_hyper_19_5_chunk.test_id 5_5_testdata_test_id_fkey R
validation_meta.test_id audit_validation_meta_test_id_fkey R
eis_data.test_id maccor_fra_data_test_id_to_testdata_meta R
sil_meta.test_id sil_meta_test_id_fkey R
sim_meta.test_id sim_meta_test_id_fkey R
test_data.test_id testdata_test_id_fkey R
test_data_cycle_stats.test_id testdata_cyclestats_test_id_fkey R

Unique identifier for the test. Auto-incremented upon insertion.
cell_id int2 5 √ null
cells.cell_id testdata_meta_cell_id_fkey R

Specific cell being tested. References the cell_id in the cells table.
schedule_id int2 5 √ null
schedule_meta.schedule_id testdata_meta_schedule_id_fkey R

Schedule file used in the test. References the schedule_id in the schedule_meta table.
test_name text 2147483647 √ null

Name of the test in cycling software.
start_date date 13 √ null

Date the test was started. Populated manually in config file.
end_date date 13 √ null

Date the test was ended. Populated manually in config file.
channel int2 5 √ null

Cycler channel the test was run on.
ev_chamber int2 5 √ null

The environmental chamber the test was run in.
ev_chamber_slot int2 5 √ null

The slot in the environmental chamber the test was run in.
thermocouples int2 5 √ null

Specific thermocouple attached to the cell being tested.
thermocouple_channels int2 5 √ null

Channel the thermocouple is attached to.
comments text 2147483647 √ null

Additional info about the test.
project_id int4 10 √ null
projects.project_id arbin_schedules_project_id_fk R

Project the test is associated with. References the project_id in the projects table.
test_capacity_mah int4 10 √ null

Rated capacity of the cell being tested.
potentiostat_id _int4 10 √ null

Potentiostat the test was run on. References the potentiostat_id in the potentiostats table.
cycler_id int4 10 √ null
cyclers.cycler_id cycler_id_testdata_meta R

Cycler the test was run on. References the cycler_id in the cyclers table.
first_recorded_datetime timestamptz 35,6 √ null
last_recorded_datetime timestamptz 35,6 √ null

Indexes

Constraint Name Type Sort Column(s)
test_id Primary key Asc test_id

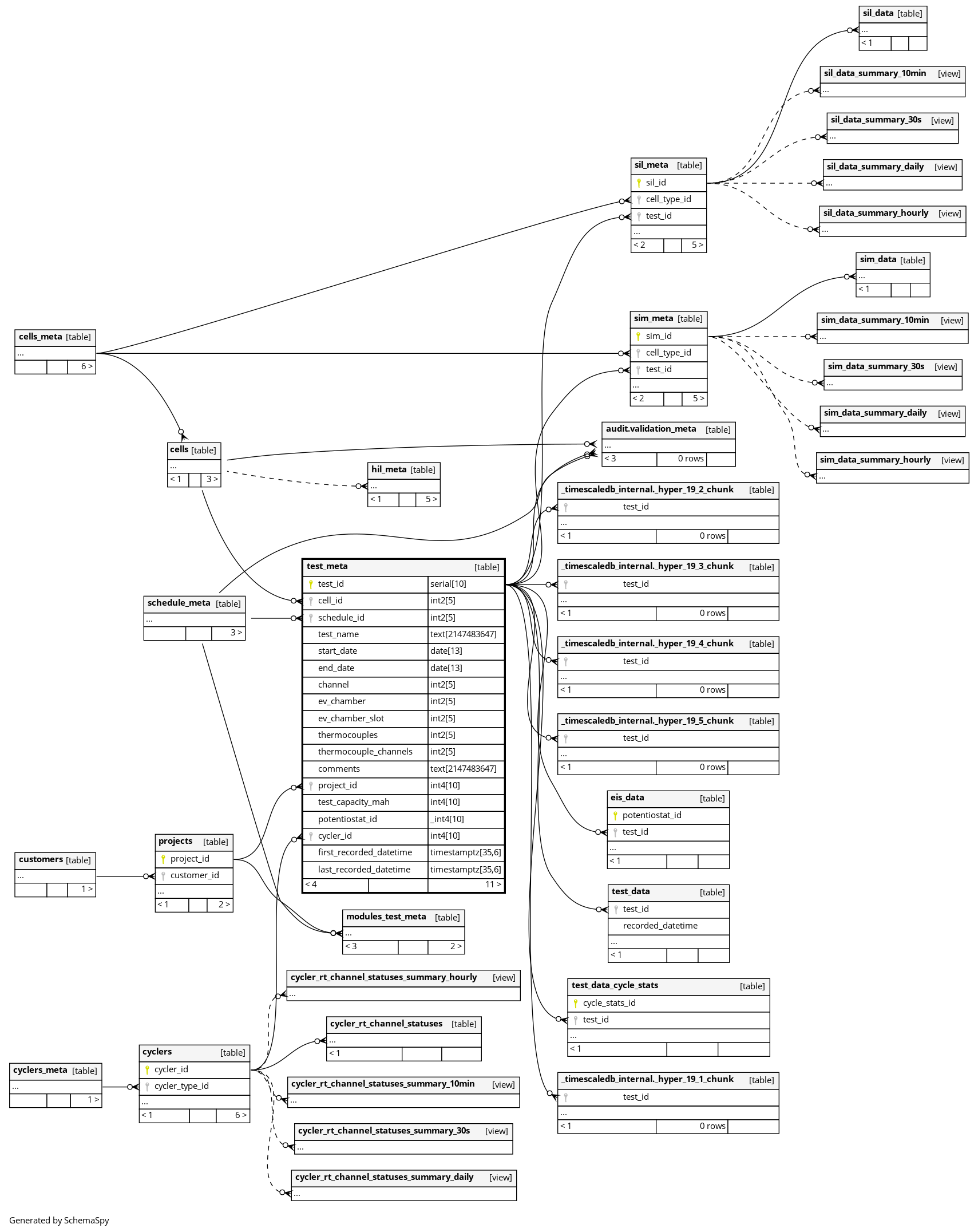

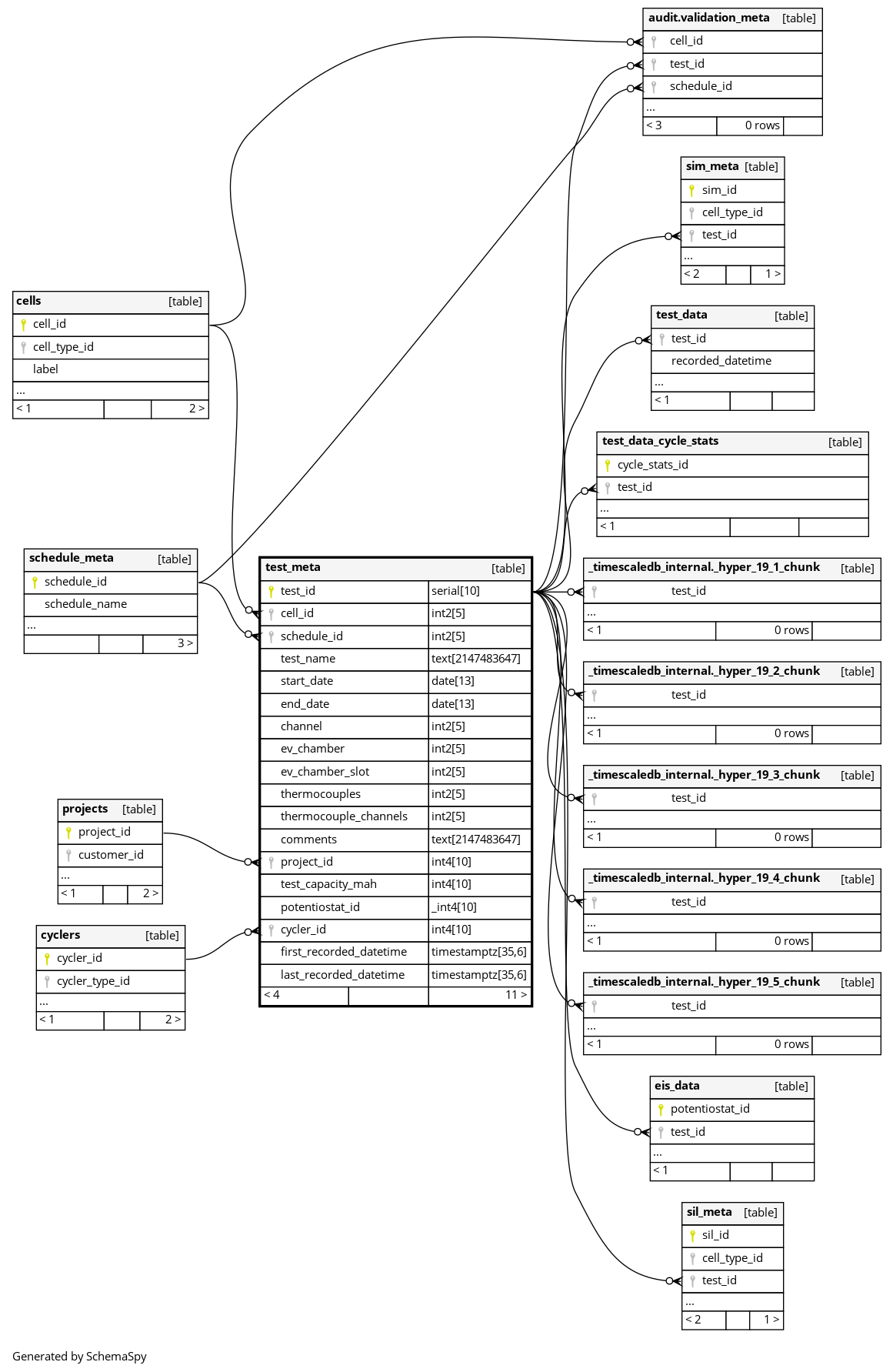

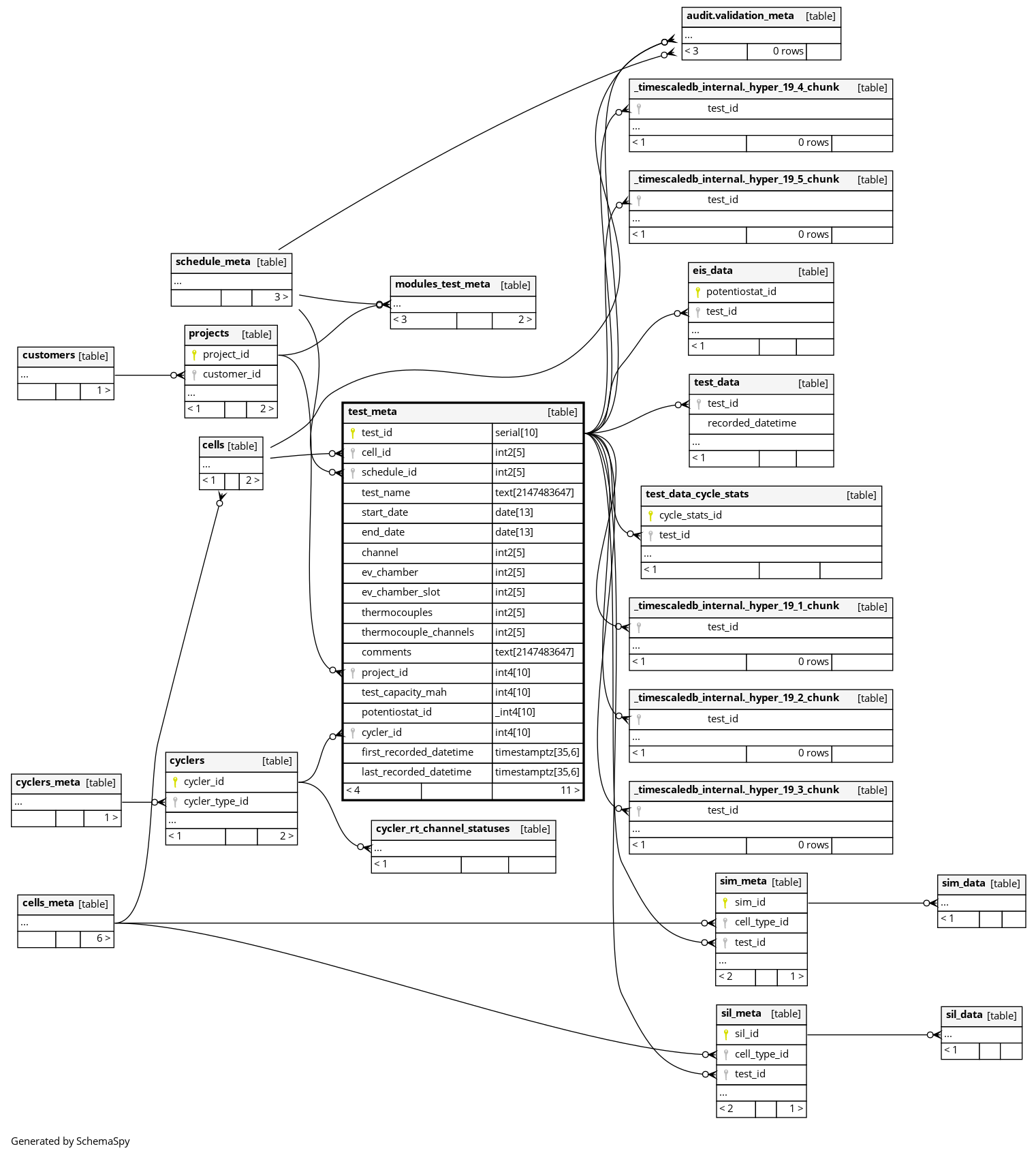

Relationships

Close relationships within degrees of separation
