cyclers

-1 rows


Description

Stores information for cycler instances.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
cycler_id serial 10 √ nextval('cyclers_cycler_id_seq'::regclass)
cycler_rt_channel_statuses.cycler_id cycler_id_fkey R
cycler_rt_channel_statuses_summary_10min.cycler_id Implied Constraint R
cycler_rt_channel_statuses_summary_30s.cycler_id Implied Constraint R
cycler_rt_channel_statuses_summary_daily.cycler_id Implied Constraint R
cycler_rt_channel_statuses_summary_hourly.cycler_id Implied Constraint R
test_meta.cycler_id cycler_id_testdata_meta R

Unique identifier for the cycler instance. Auto-incremented upon insertion.
cycler_type_id int4 10 null
cyclers_meta.cycler_type_id cycles_to_cyclers_meta_fk R

Refers to the make of the cycler defined in cyclers_meta table.
sn text 2147483647 √ null

Serial number of the cycler from the manufacturer.
calibration_date date 13 √ null

Date of last calibration.
calibration_due_date date 13 √ null

Date of next calibration.
location text 2147483647 √ null

Lab where cycler is located.

Indexes

Constraint Name Type Sort Column(s)
cyclers_pkey Primary key Asc cycler_id

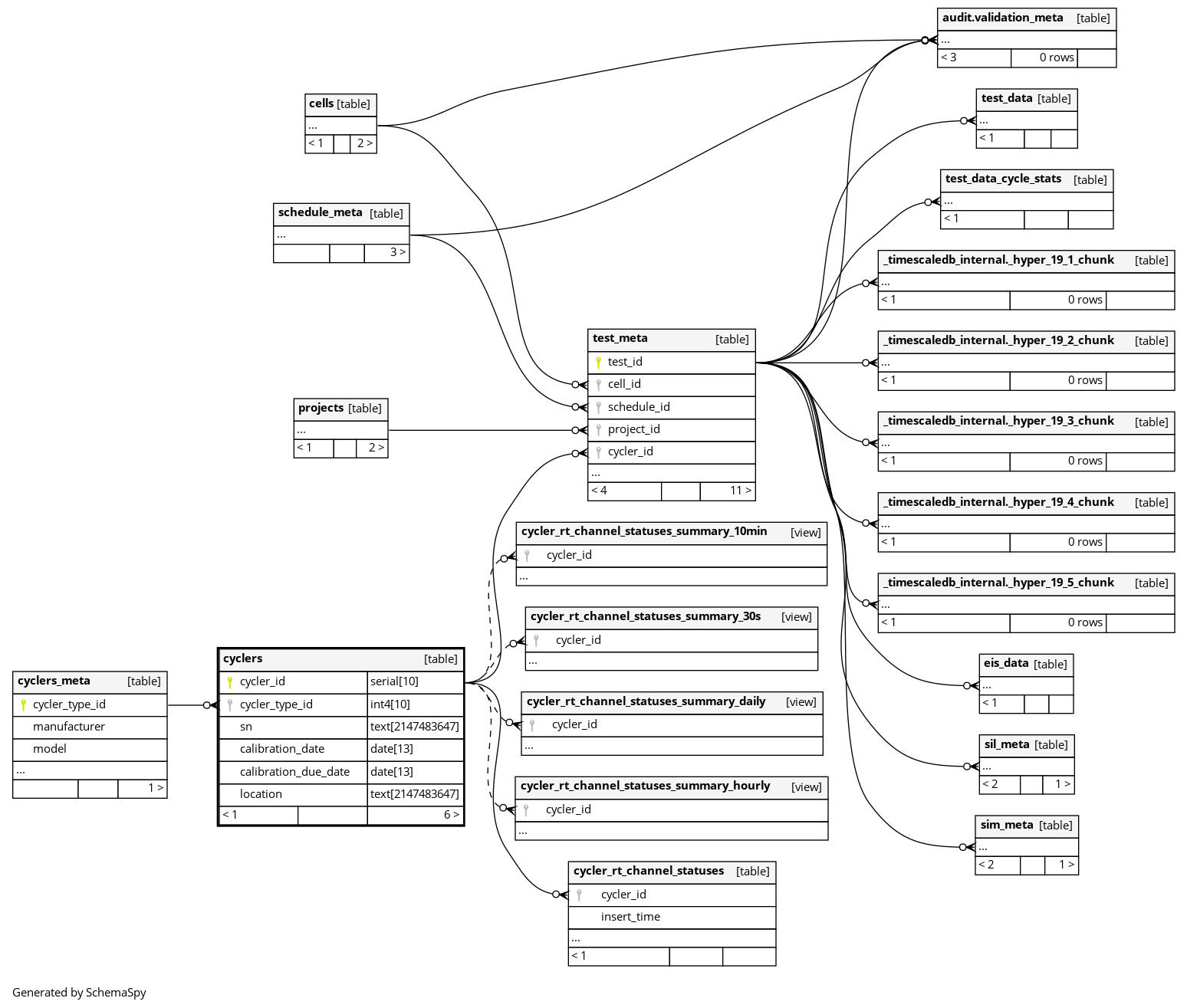

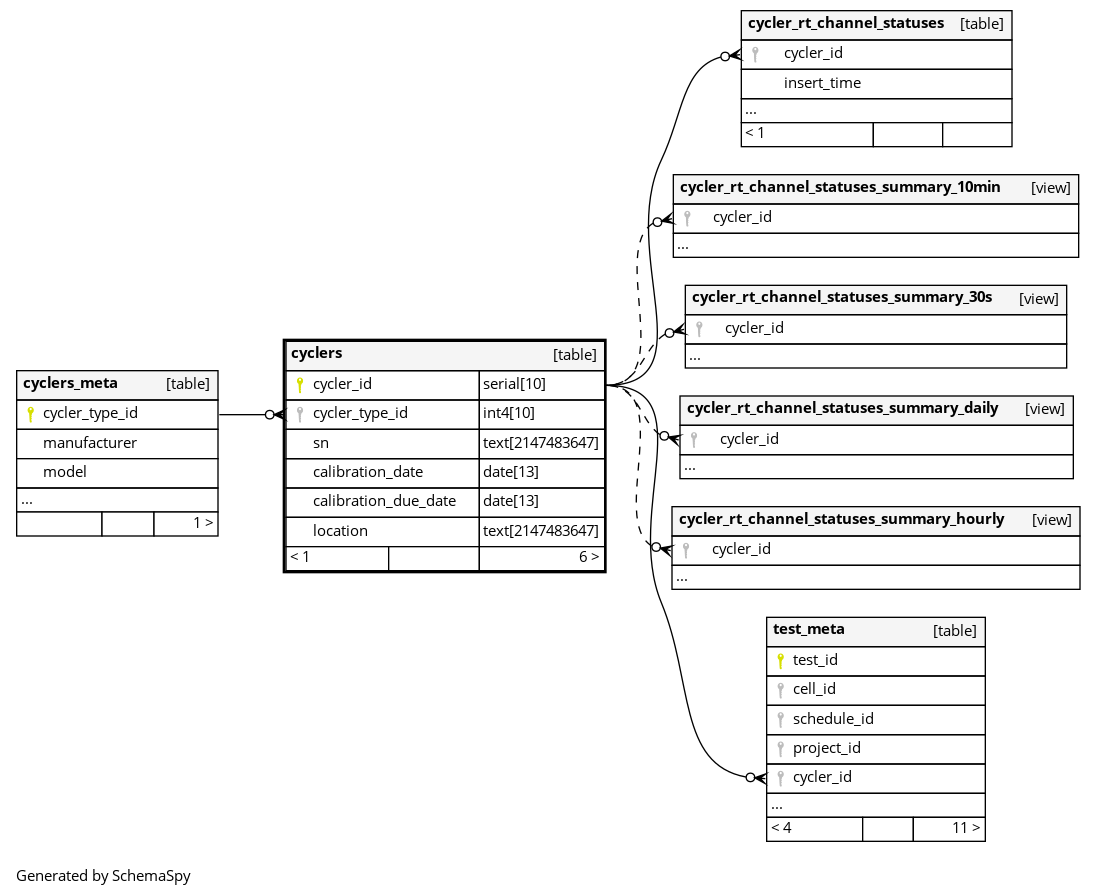

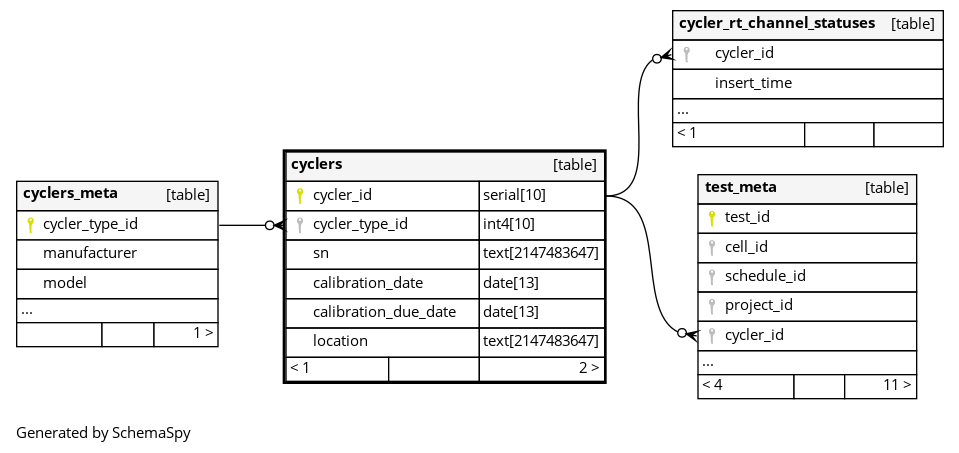

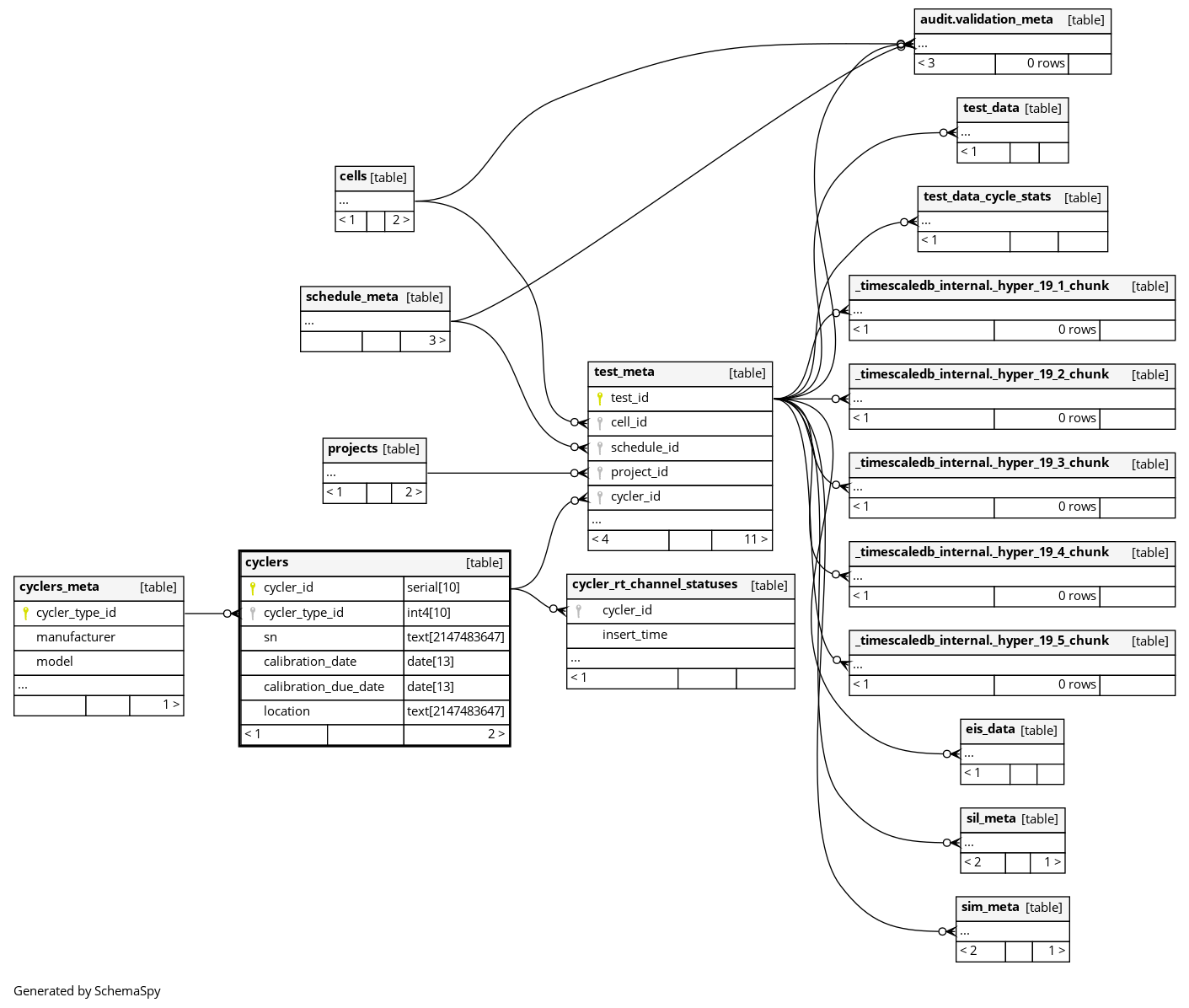

Relationships

Close relationships within degrees of separation
