sil_meta

-1 rows


Description

Stores high-level information about software-in-the-loop tests.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
sil_id serial 10 √ nextval('sil_meta_sil_id_seq'::regclass)
sil_data.sil_id sil_data_sil_id_fkey R
sil_data_summary_10min.sil_id Implied Constraint R
sil_data_summary_30s.sil_id Implied Constraint R
sil_data_summary_daily.sil_id Implied Constraint R
sil_data_summary_hourly.sil_id Implied Constraint R

Unique identifier for the SIL test. Auto-incremented upon insertion.
launched_at timestamptz 35,6 now()

The date and time the SIL test was launched.
user_id text 2147483647 null

The user who launched the SIL test.
status text 2147483647 √ null

The status of the SIL test. Can be idle, rest, charge, discharge, problem, or other.
cell_type_id int4 10 √ null
cells_meta.cell_type_id sil_meta_batterytype_id_fkey R

The cell used in the SIL test. References the cell_type_id in the cells_meta table.
test_id int4 10 √ null
test_meta.test_id sil_meta_test_id_fkey R

The test the SIL test is associated with. References the test_id in the test_meta table.
configs jsonb 2147483647 √ null

The configuration files used in the test.
other_details jsonb 2147483647 √ null

Other details about the SIL test.

Indexes

Constraint Name Type Sort Column(s)
sil_meta_pkey Primary key Asc sil_id

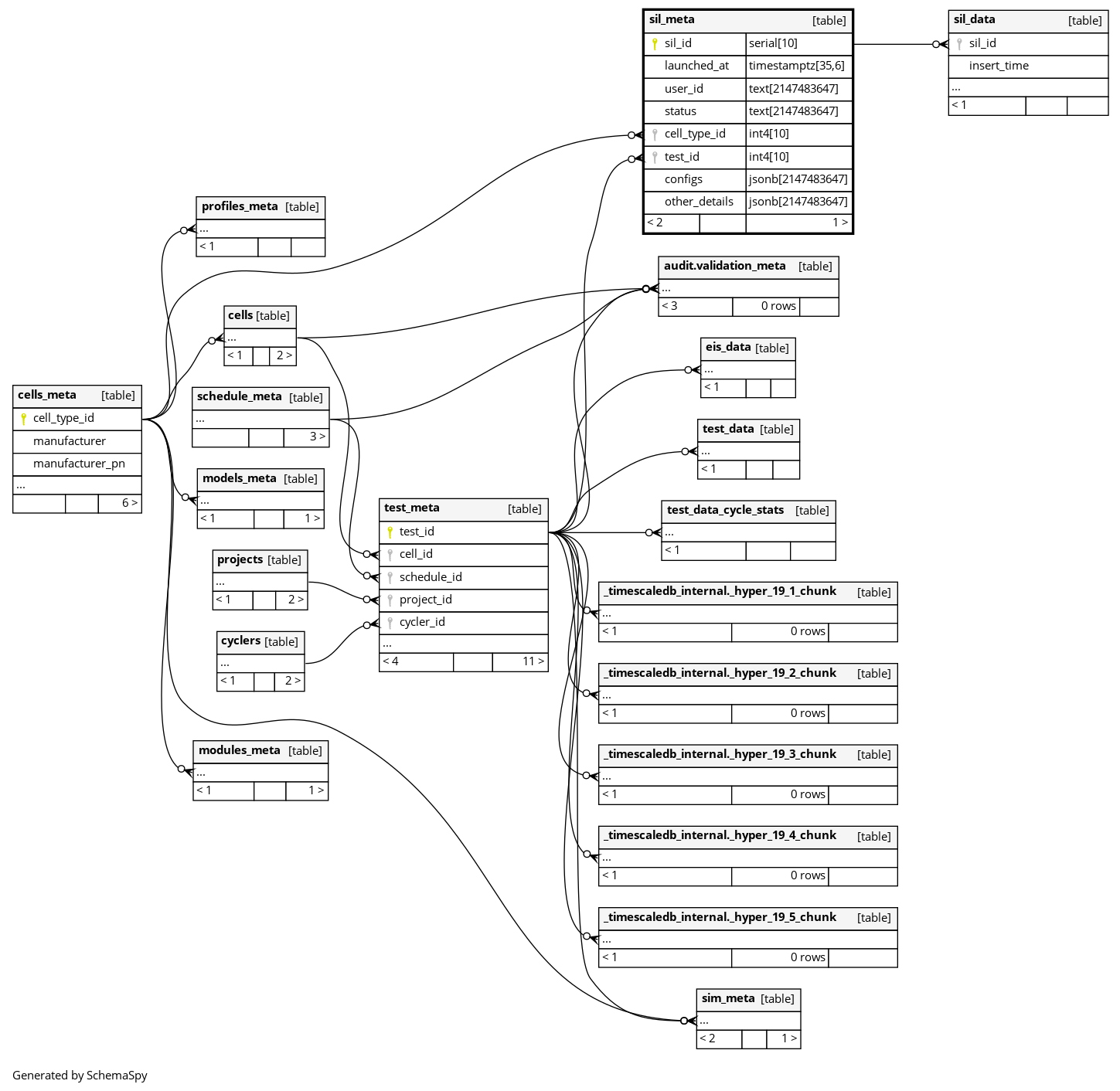

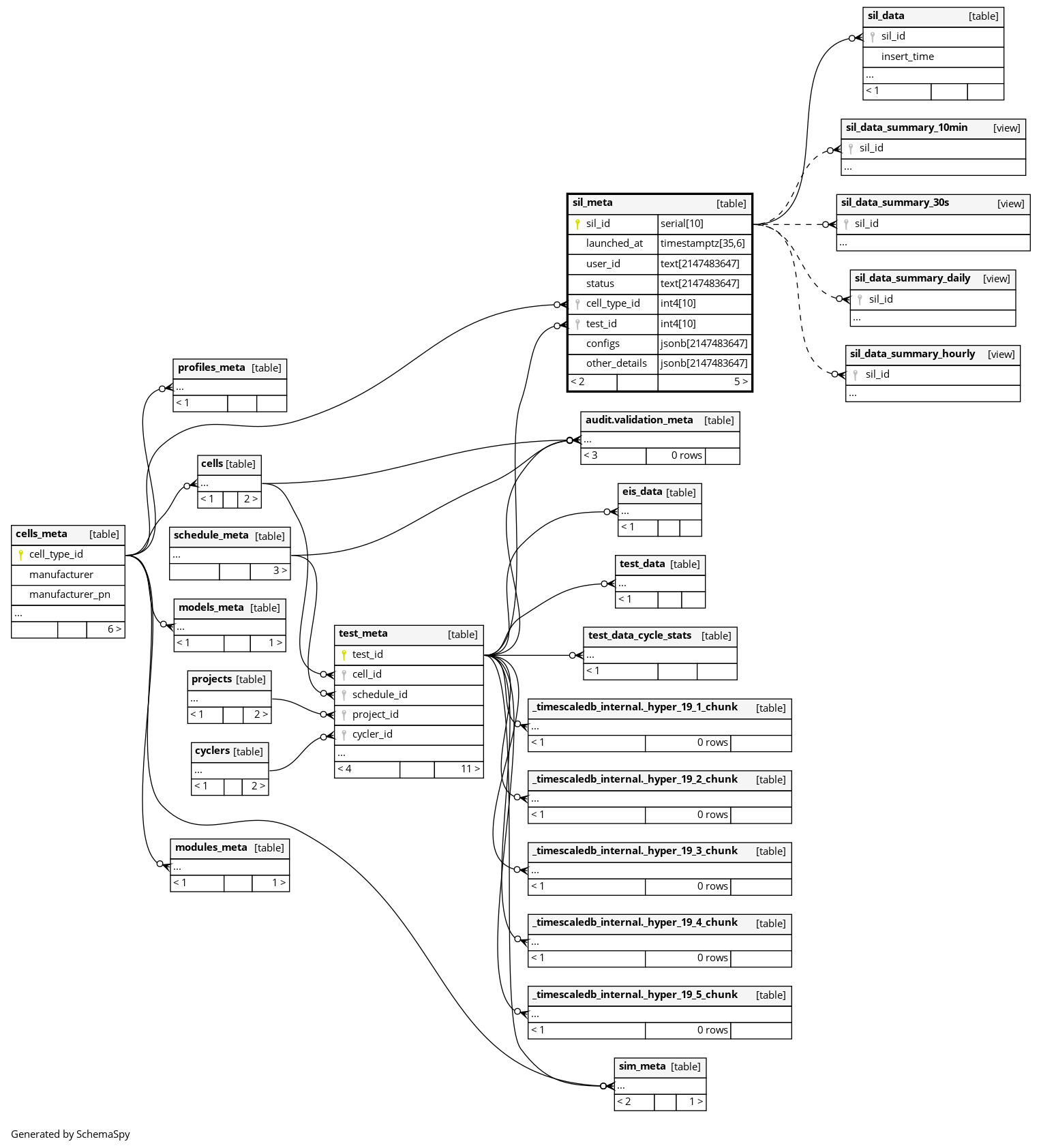

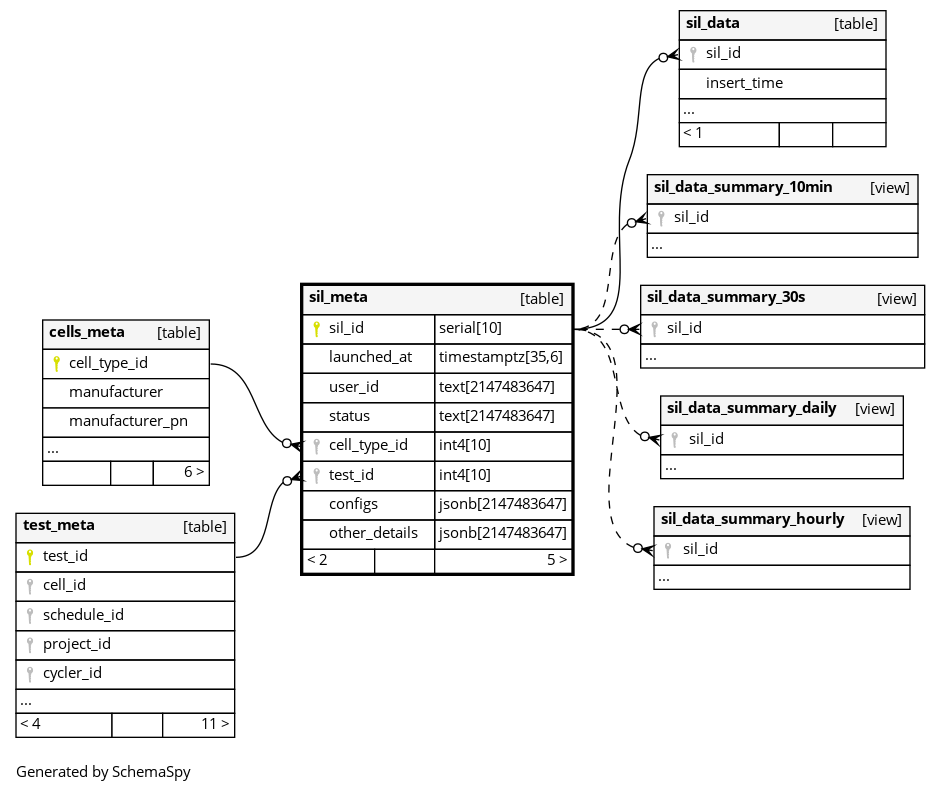

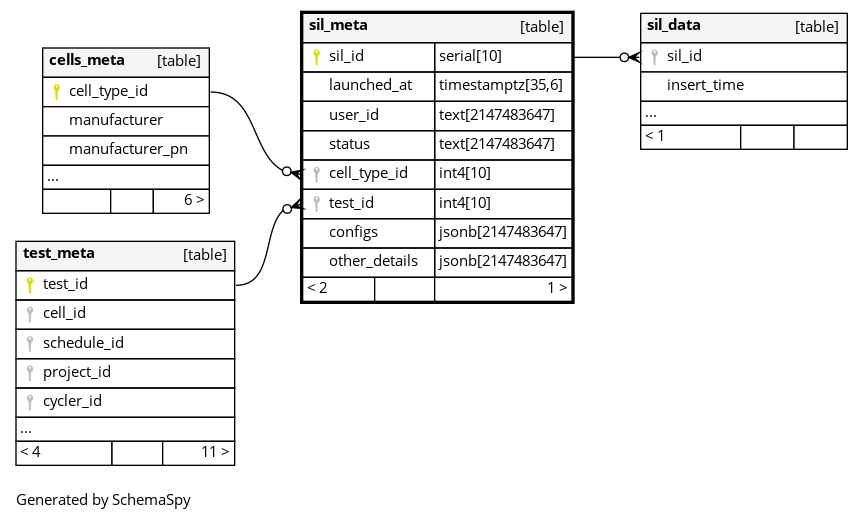

Relationships

Close relationships within degrees of separation
